Automatic Machines

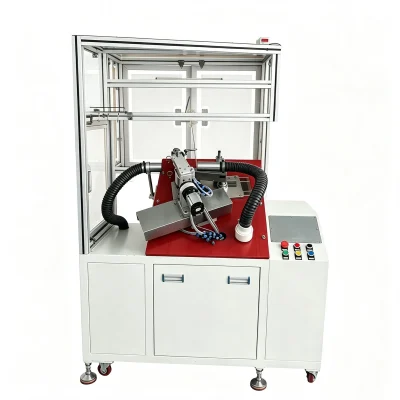

Automatic Hair Planting Machine — Non-Interlock Type

It is mainly used for non-interlock single color hair planting.

  • MOQ1 set
  • Lead time45 days
  • ServiceSourcing · QC · Consolidation · Shipment

Description

It is mainly used for non-interlock single color hair planting.

Basic Data :

Spec. : 850 x 600 x 1300mm

Weight : 200kgs

Voltage : 220V

Power : 2.0KW

Air Pressure : no need

Controller : PLC

Programming : Digital

Interact axises : 4

Fiber Break Detection : available

Head Mold : 3D printed mold

Application Data :

Head Sizes : 2.0 ~ 8.0cm (from left ear to right ear)

Head Hardness : Shore 40 ~ 80

Hair Material : PP / PE / PVC / PVDC

Hair Cut : 7.5cm (3″) ~ 30cm (12″)

Hair Rooting : Workable for single strand or mixed strands

Part Line Rooting : workable

Fiber Lock Type : Non-Interlock

Needle Size : 80 #

Rooting Speed : Max 12 stitches / sec

Automatic Machines FAQ

How can I see the machines before buying?

Every machine product page carries its own demonstration video, so you can review the machine working one-to-one before requesting a quotation.

Do you support installation & training?

Basic setup guidance and documentation are provided; for on-site services, tell us your country and we will quote accordingly.

What about spare parts?

Wear parts and consumables are sourced together with your machine — ask us for a spare-parts package with your order.

Are the machines patented?

Yes — the machines we represent hold 50+ patents, including invention patents. A selection of certificates is shown on the category page; the full list is available on request.

What is covered by the warranty?

Consumable parts — including, but not limited to, the needle, inner needle tube, needle rod, cutter, screws, bolts, and hair bar — are excluded from warranty coverage. All other main components, such as the motor, servo, screen, and sensors, are covered by a one-year warranty, unless damage or failure is caused by improper operation or accident.

How are head molds supplied?

Head molds are available at an additional charge. Should a mold be required, the client must provide at least 12 bald head samples for mold fabrication.

What are the terms for overseas training?

Overseas training conducted by our technician: airfare is complimentary for orders of two (2) units or more placed in a single batch. Accommodation and meals, however, shall be arranged and borne by the client.
