Automatic Machines
Nylon Fiber Color Book
The complete shade range of our nylon doll hair, photographed page by page. The…
SKU:

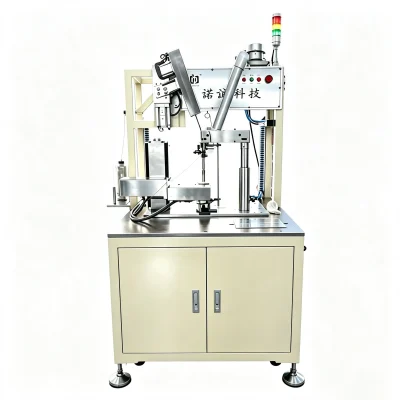

It is mainly used for single color automatic doll hair rooting.
It is mainly used for single color automatic doll hair rooting.
Basic Data :
Spec. : 850 x 850 x 1700mm
Weight : 220kgs
Voltage : 220V
Power : 5.0KW
Air Pressure : 6 pa
Monitor : available
Controller : typical CNC type
Data Storage : 40
Hand Wheel : available
Laser Positioning : available
Programming : CNC w. Infred Ray
Interact axises : 6
Fiber Break Detection : available
Head Mold : Copper w. Polyster Putty or 3D printed mold
Application Data :
Head Sizes : 2.5 ~ 15cm (from left ear to right ear)
Head Hardness : Shore 40 ~ 100
Hair Length : 5cm(2″) ~ 40cm (16″)
Hair Material : Nylon / PP / PE / PVC / PDVC / PET / PBT / Acrylic etc
Hair Shape : Straight & Curly
Hair Rooting : Workable for single strand or mixed strands
Braid Rooting : max 2mm width
Part Line Rooting : workable
Fiber Lock Type : Interlock
Needle Sizes : 80 / 90 / 100 / 110 /120 / 130 /140 /160 /180#
Rooting Speed : Max 22 stitches / sec
Every machine product page carries its own demonstration video, so you can review the machine working one-to-one before requesting a quotation.
Basic setup guidance and documentation are provided; for on-site services, tell us your country and we will quote accordingly.
Wear parts and consumables are sourced together with your machine — ask us for a spare-parts package with your order.
Yes — the machines we represent hold 50+ patents, including invention patents. A selection of certificates is shown on the category page; the full list is available on request.
Consumable parts — including, but not limited to, the needle, inner needle tube, needle rod, cutter, screws, bolts, and hair bar — are excluded from warranty coverage. All other main components, such as the motor, servo, screen, and sensors, are covered by a one-year warranty, unless damage or failure is caused by improper operation or accident.
Head molds are available at an additional charge. Should a mold be required, the client must provide at least 12 bald head samples for mold fabrication.
Overseas training conducted by our technician: airfare is complimentary for orders of two (2) units or more placed in a single batch. Accommodation and meals, however, shall be arranged and borne by the client.
